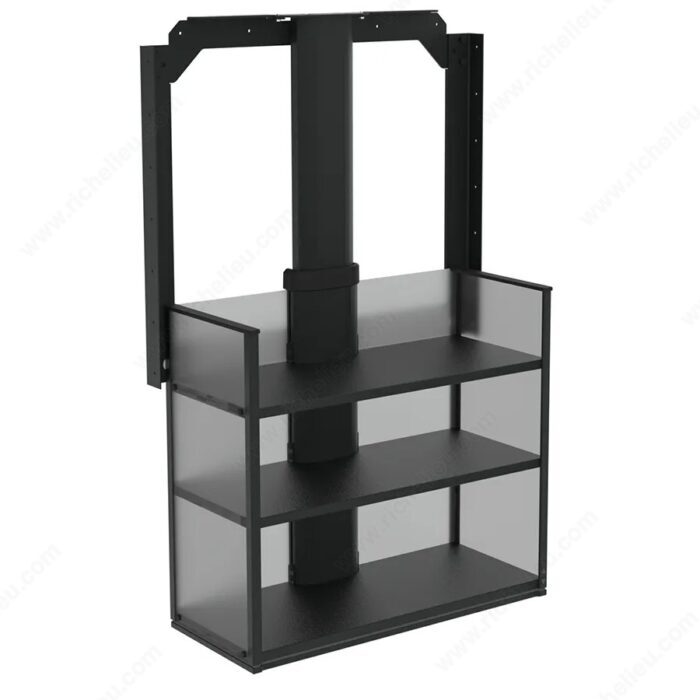

VERTI 840 (KB) – Electric Lift for Upper Cabinets (Height 27.6 to 33.1″ / 700 to 840 mm)

Description

VERTI 840 (KB) – Electric Lift for Upper Cabinets (Height 27.6 to 33.1″ / 700 to 840 mm)

Features and Benefits

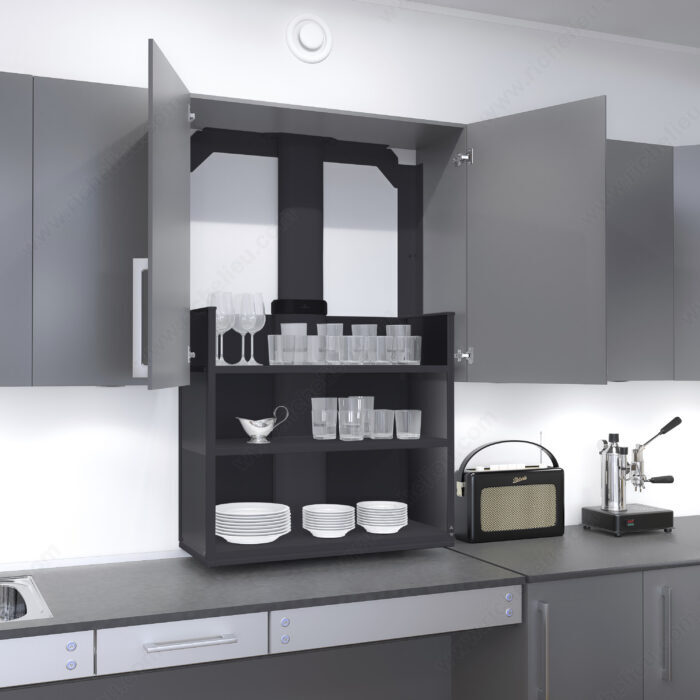

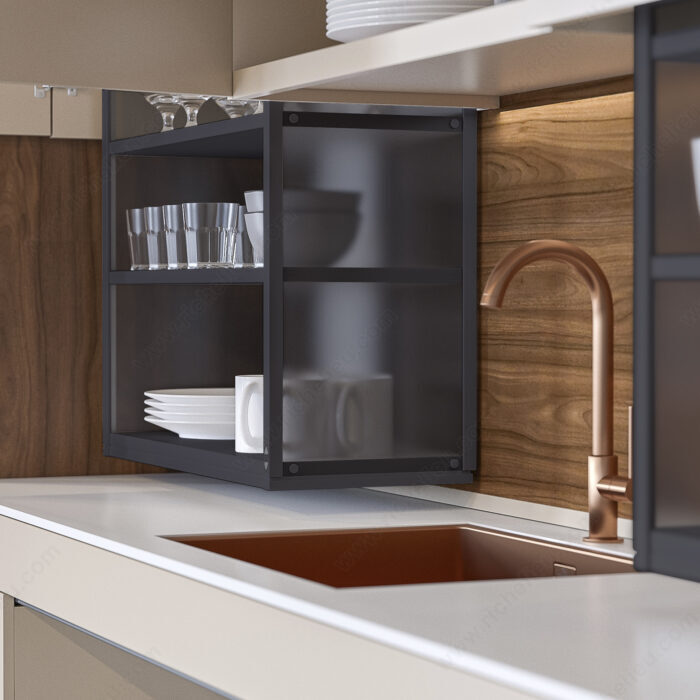

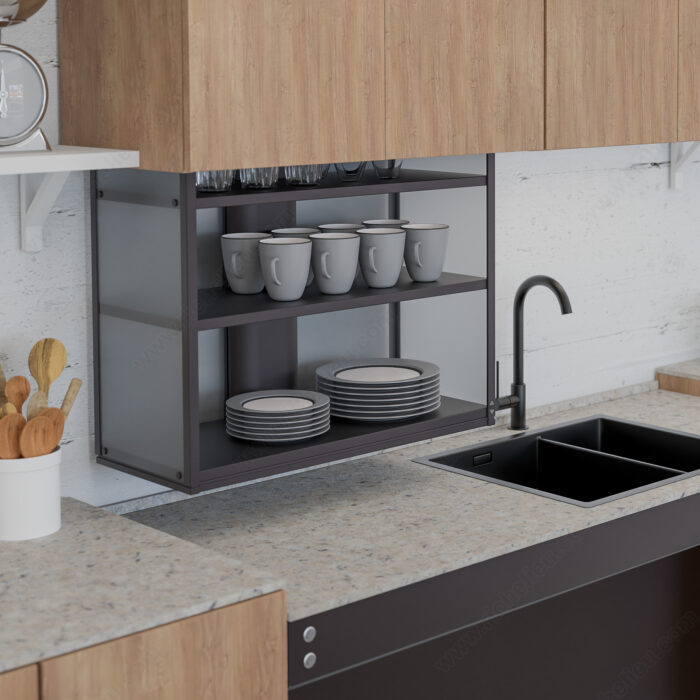

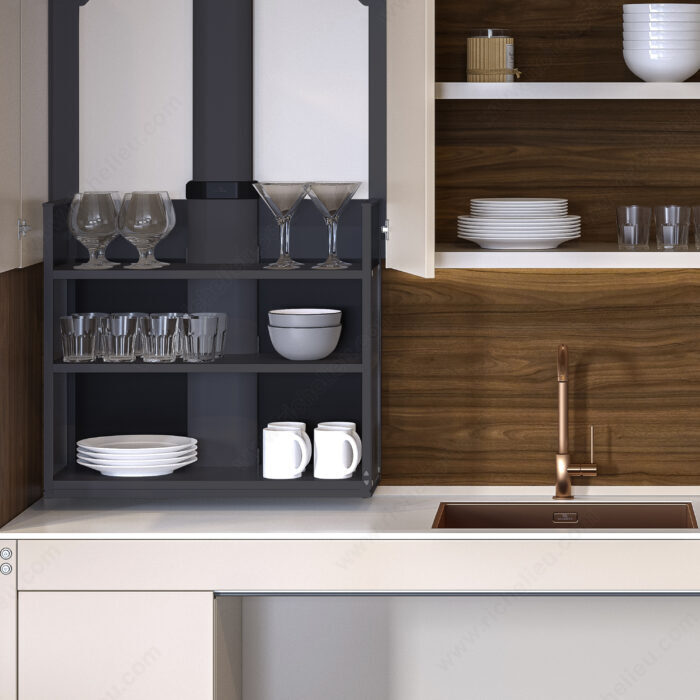

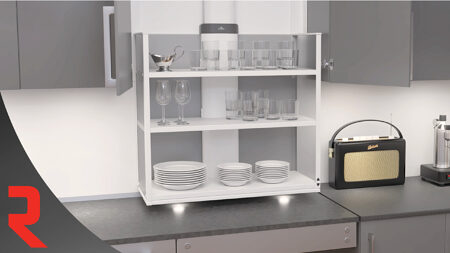

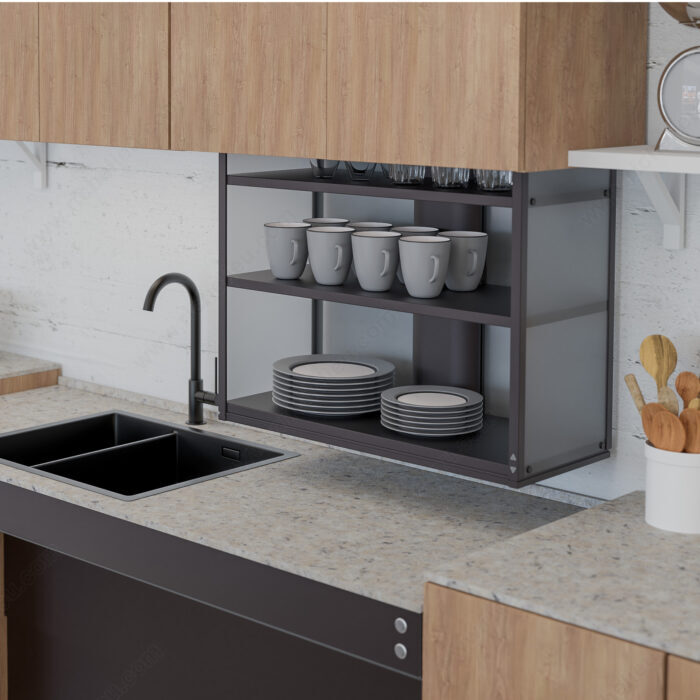

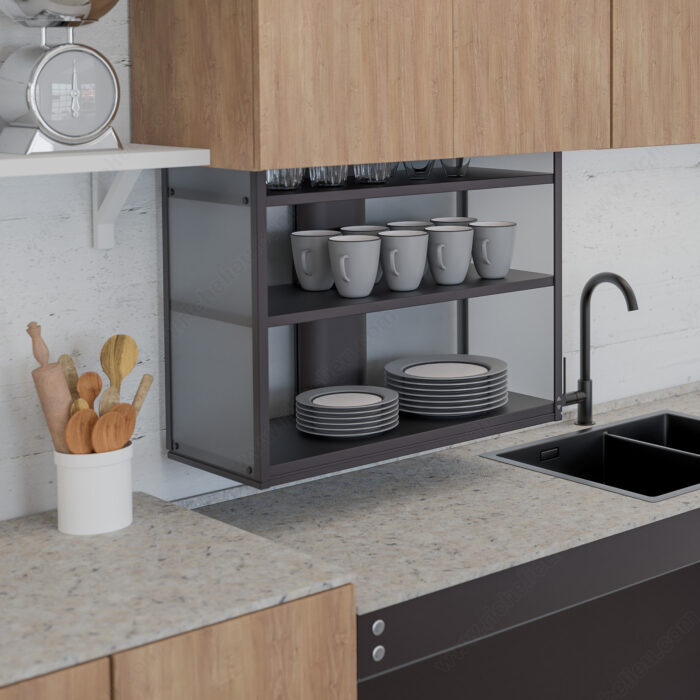

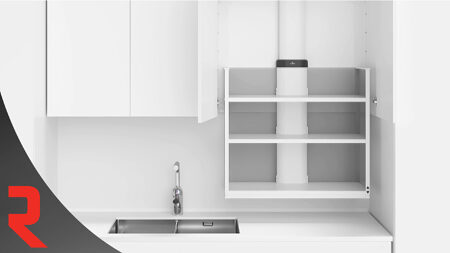

• Lowers the shelf unit vertically down to the countertop.
• When lowered, there is free space on the worktop in front of the shelves.
• Installed in a new or existing cabinet from which the bottom has been removed.
• Safety plate stops the lowering if it comes in contact with any object on the underlying work surface.
• 3D available and preloaded in BIMobject software.

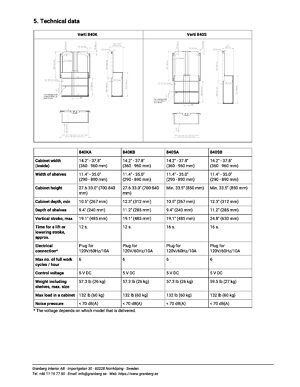

Technical Specifications

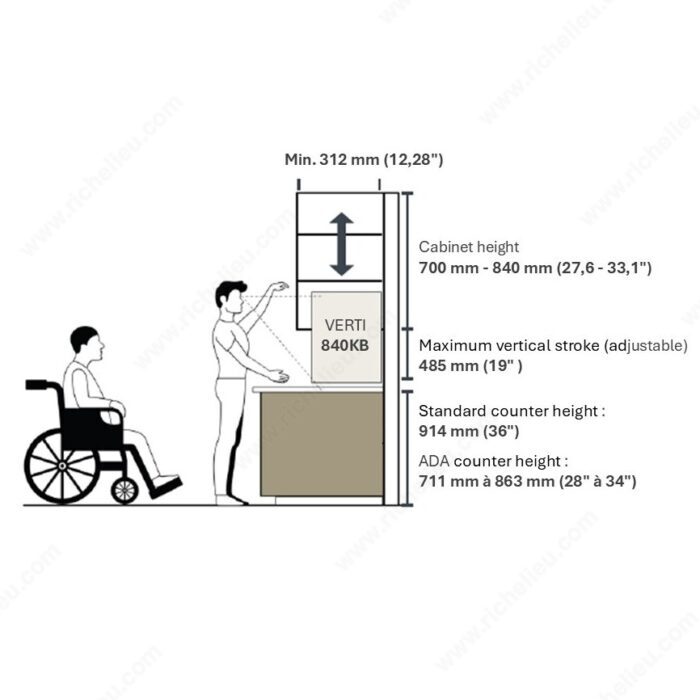

• Cabinet Height: Min. 700 mm (27.6″)
• Interior Cabinet Depth: 312 mm
• Maximum vertical stroke: 485 mm

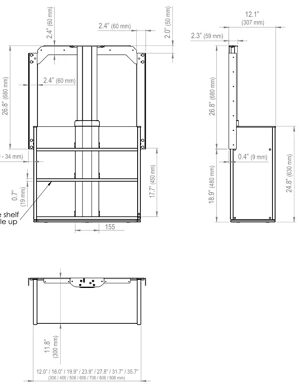

• Product Dimension – Depth: 307 mm
• Product Dimension – Height: 680 mm
• Cabinet Material Thickness: 16 to 20 mm
• Load Capacity: 60 kg
• Electrical connection: 120V/60Hz/10A
• Number of Shelves or Trays: 3
• Brand: Granberg
• Standards and Certifications: ADA, CE, cETLus
• Depth of shelves: 285 mm

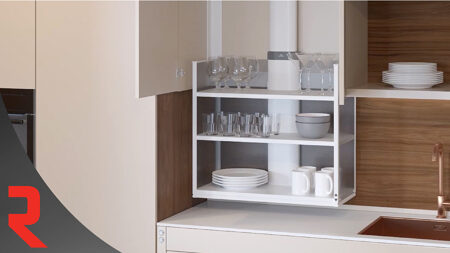

• PHOTOS AND VIDEOS: See Granberg VERTI 840 by Richelieu in action
• Discover Granberg VERTI 840 – Electric Wall Cabinet Lift: Granberg VERTI 840 – Electric Wall Cabinet Lift in Action

Important Information

– Suitable for cabinets with a minimum height of 700 mm (27.6 in)

– Shelf depth: 285 mm (11.22 in)

– Maximum vertical travel: 485 mm (19.09 in)

– Electrical connection: Plug for 120V/60Hz/10A

– IP rating: IP20

– Speed: 41 mm/sec

– Control button integrated on the right side; an additional control button can be used for reduced mobility (no. 61310)
