ManuLift 6350 - Manual Cranked Countertop Lift System

Discover the Granberg MANULIFT 6350 - Manual Crank Kitchen Worktop Lift

ManuLift 6350 – Manual Cranked Countertop Lift System

Name: ManuLift 6350 - Manual Cranked Countertop Lift System
SKU: LXI-GRAN-FAMILY-2725475
Availability: InStock

Granberg ManuLift 6350 – Manual Cranked Countertop Lift System. Load capacity: Max. 100 kg.

Product Dimension – Width

Clear

SKU: LXI-GRAN-FAMILY-2725475

Description

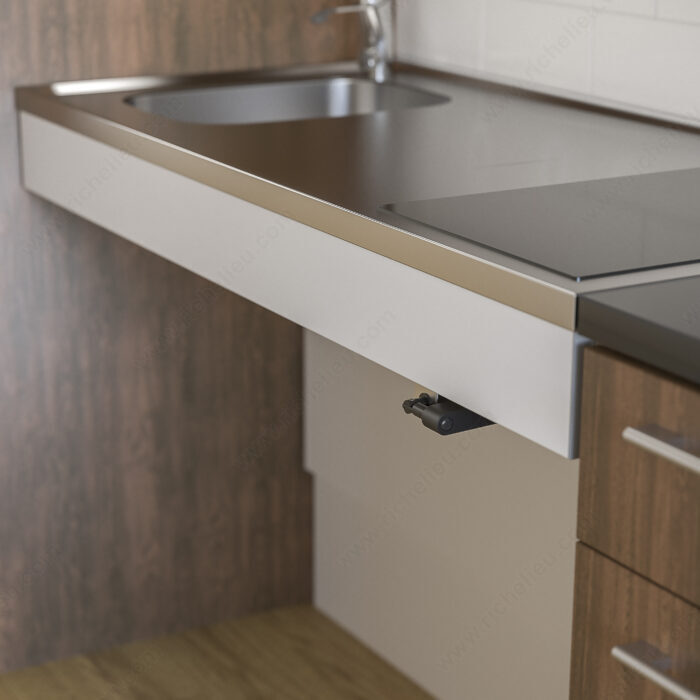

ManuLift 6350 – Manual Cranked Countertop Lift System

Features and Benefits

Can be equipped with drawers, hob and sink

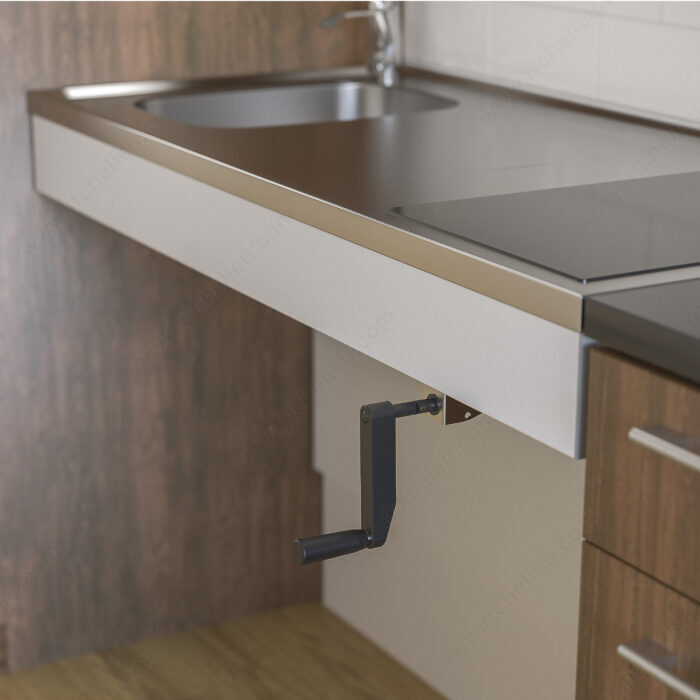

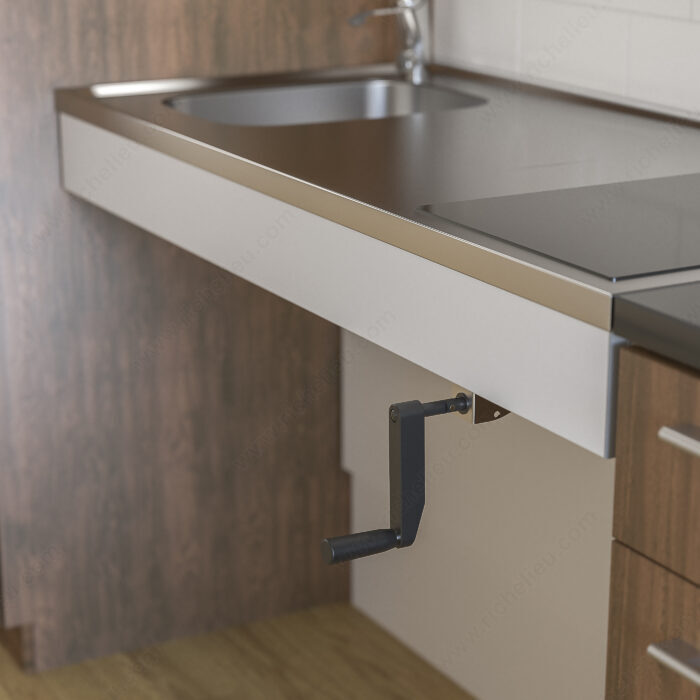

11.8″ (300 mm) stepless height adjustment via a cranked winding handle
Adjustable depth, 22.0″- 23.2″ (560-590 mm) from wall
Frame in aluminum. Prepared from factory. Movable (sideward) and angle adjustable consoles
Brackets and screws for installation of fronts and countertop are included in the delivery
REQUIRED PRODUCTS
Requires the following products
Cover Panel Mounting Adaptors for Baselift & Manulift
See All Options
AND
Cover Panels for Baselift & Manullift
See All Options
AND
Aluminum Front for Baselift & Manulift – 103 mm Height
See All Options

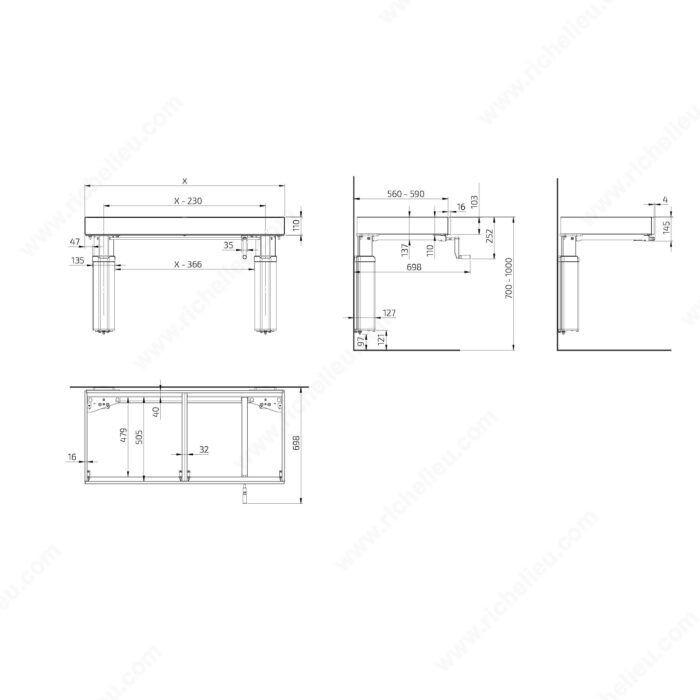

Technical Specifications

Product Dimension – Depth: 560 to 590 mm
Product Dimension – Height: 700 to 1 000 mm
Front height: 103 mm
Product Time: Special Online Order
Installation: Wall-mounted
Material: Aluminum
Standards and Certifications: ADA, CE
Brand: Granberg
Load Capacity: Max. 100 kg
Electrical connection: 120V/60Hz/10A

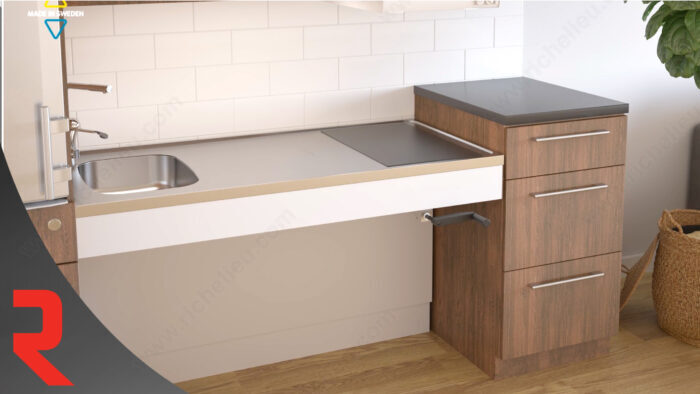

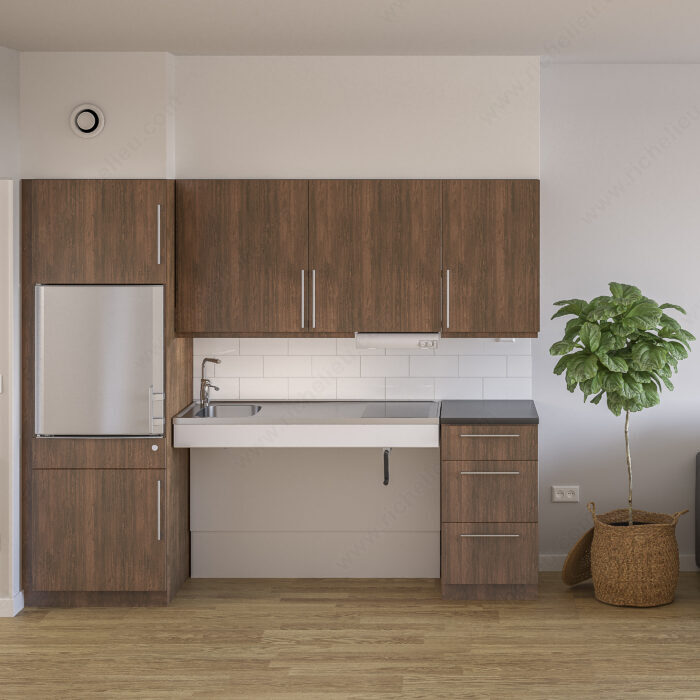

PHOTO AND VIDEO GALLERY: Discover the Granberg MANULIFT 6350 – Manual Crank Kitchen Worktop Lift

Important Information

– Fittings for countertop enclosed

– The countertop’s depth must be 0.59″ (15 mm) shallower than adjoining countertops (to provide a gap for tiles and movement)

– Width of the countertop = width of the lift

– Sink bowls with a maximum height of 4.7″ (120 mm) can be integrated

– Width of front = width of lift minus 0.2″ (-4 mm)

– Height of front: 4.1″ (103 mm). Fittings enclosed

– Cover panels can hide installations under the worktop 2 pcs width = width of lift -0.4″ (-10 mm), height 17.2″ (438 mm), thickness 0.5″-0.8″ (12-20 mm)

– 3.9″ (100 mm) free space under the wall brackets for electrical installations and piping

Additional information

Product Dimension – Width

590 mm (23 1/4 in.), 600 mm (23 5/8 in.), 690 mm (27 3/16 in.), 700 mm (27 9/16 in.), 790 mm (31 1/8 in.), 800 mm (31 1/2 in.), 890 mm (35 1/16 in.), 900 mm (35 7/16 in.), 990 mm (39 in.), 1 000 mm (1/16 to 0 in.), 1 090 mm (1/16 to 3 9/16 in.), 1 100 mm (1/16 to 3 15/16 in.), 1 190 mm (1/16 to 7 1/2 in.), 1 200 mm (1/16 to 7 7/8 in.), 1 290 mm (1/16 to 11 7/16 in.), 1 300 mm (1/16 to 11 13/16 in.), 1 390 mm (1/16 to 15 3/8 in.), 1 400 mm (1/16 to 15 3/4 in.), 1 490 mm (1/16 to 19 5/16 in.), 1 500 mm (1/16 to 19 11/16 in.), 1 590 mm (1/16 to 23 1/4 in.), 1 600 mm (1/16 to 23 5/8 in.), 1 690 mm (1/16 to 27 3/16 in.), 1 700 mm (1/16 to 27 9/16 in.), 1 790 mm (1/16 to 31 1/8 in.), 1 800 mm (1/16 to 31 1/2 in.), 1 890 mm (1/16 to 35 1/16 in.), 1 900 mm (1/16 to 35 7/16 in.), 1 990 mm (1/16 to 39 in.), 2 000 mm (1/16 to 0 in.), 2 090 mm (1/16 to 3 9/16 in.), 2 100 mm (1/16 to 3 15/16 in.), 2 190 mm (1/16 to 7 1/2 in.), 2 200 mm (1/16 to 7 7/8 in.), 2 290 mm (1/16 to 11 7/16 in.), 2 300 mm (1/16 to 11 13/16 in.), 2 390 mm (1/16 to 15 3/8 in.), 2 400 mm (1/16 to 15 3/4 in.)
