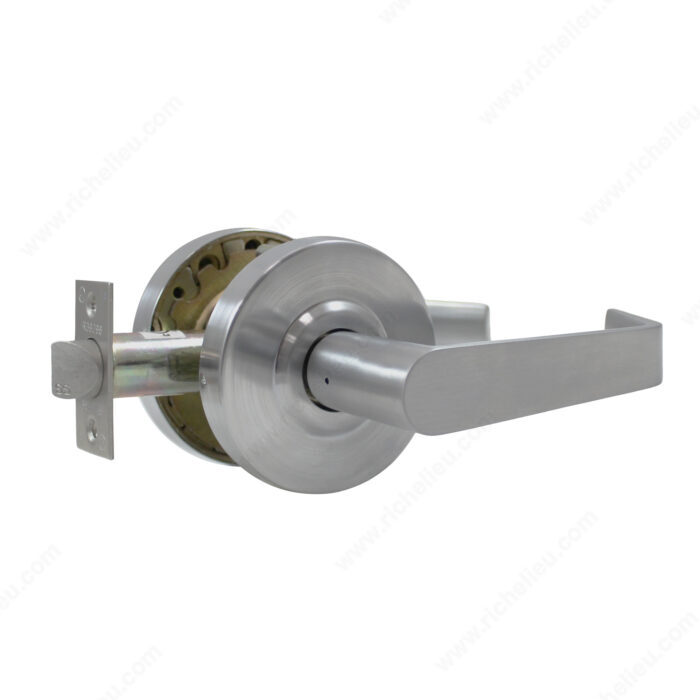

Cylindrical Leverset – FY Series

Description

Cylindrical Leverset – FY Series

Technical Specifications

• Color/Finish: Satin Chrome
• Fire-Rating: 3 Hour Fire-Rating
• Grade: 2
• Door Thickness: 1 3/8 to 2 in
• Handing Position / Opening Side: Reversible for Left or Right
• Barrel Type: SC6 6-Pin Solid Brass Cylinder
• Style: Straight Levers
• Door Type: Commercial
• Usage: Hinge Door, Commercial Door
• Standards and Certifications: UL, ADA, ANSI/BHMA A156.2 Grade 2
• Brand: Onward
• Rose Diameter: 3 5/16 in
• Latch Throw: 1/2 in
• Width: 6 1/8 in
• Projection: 6 1/2 to 6 7/8 in
• Material: Steel
• Screw/Nail: Included
